S-1200 Portable Wiring Kit

Regular Price
Sale Price
Regular Price
Sold Out
Unit Price
Translation missing: en.general.accessibility.unit_price_separator
Shipping calculated at checkout.

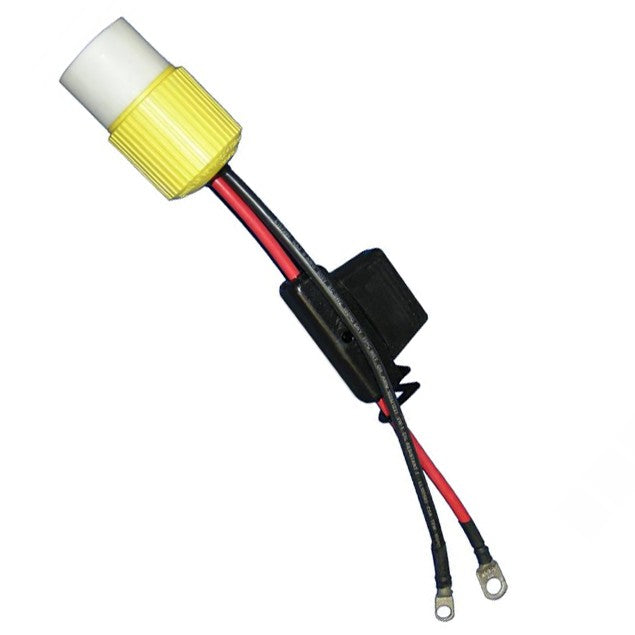

(Includes: Hubbell HBL328DCC inline receptacle, 50amp inline fuse,
1 foot of 8 gauge wire, solder lug ends - (ready to use)

S-1200 Portable Wiring Kit Instructions:
The portable wiring kit is easy to install. It is meant to be used with most common marine deep cycle batteries which incorporate a wing nut for attaching terminals.
Attach the red wire with the larger ring hole to the positive (+) terminal and the black wire with the smaller ring hole to the negative (-) terminal. Make sure all connections are tight and clean. The pigtail includes a replaceable 50 amp Maxi fuse – replacements are available from Lindgren-Pitman. The kit also includes a Hubbell 328DCC inline receptacle prewired into the kit. This receptacle mates to the Hubbell plug installed on all Lindgren-Pitman S-1200 reels when they leave the factory. Care should be taken to ensure the receptacle is kept clean and dry. Periodically the terminals should be sprayed with some type of corrosion inhibitor and over time eventually replaced.
Warning: always use eye protection when working on batteries, making sure to never allow wires to touch. Remove all personal metal items such as watches, rings and bracelets and be extremely careful when working with metal tools. Never smoke or allow a spark as batteries generate explosive gasses.
